Antec Veris Fusion Black HTPC case

This article was originally posted here.

Introduction:

I purchased an Antec Fusion Black case to replace my aging HTPC.

The case looks very nice, until you turn on the LCD display…

The Good:

  • The case looks very nice.
  • The construction is solid.

The Bad:

  • The two included case fans do not have speed monitoring wires, I had to
    purchase new fans.

    For such an expensive case this is rather disappointing.

  • There are two fans on the side of the case, both set to extract hot air,
    but hard drives are located in an area with no direct ventilation.

    There is ample ventilation holes around the drives, but it remains to be
    seen if the drives will overheat or not.

  • The LCD display used on the case is an OEM version of the iMON from
    SoundGraph.

    The Antec provided software has far fewer functions compared to the software
    provided by SoundGraph, unfortunately the SoundGraph software does not work with Antec
    LCD.

  • The LCD turns on bright blue when power is applied to the case.

    The LCD only turns off after the LCD software is installed, and the setting
    enabled to turn the LCD off.

    I really expected the opposite, LCD remains off until turned on by
    controlling software.

  • The LCD contrast is very poor, and the viewing angle is severely limit.

    From pictures I expected to see a blue display on a black background, but
    instead I see dark blue on light blue, it literally looks like the backlight
    is way too bright.

    The LCD details are not visible from angles other than almost right in front
    of the display.

    The plastic panel covering the LCD is highly reflective and any light
    sources obscure the display contents.

    The Antec LCD looks like a cheap joke compared to the excellent quality of
    the LCD of my Yamaha RX-V2700 receiver.

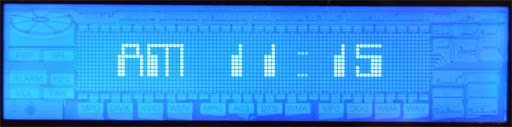

    Low contrast setting (text is visible):


    LCD Contrast Low

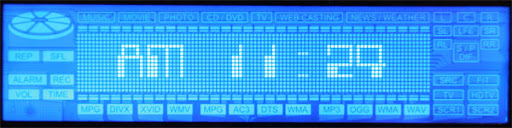

    Medium contrast setting (text is partially visible):


    LCD Contrast Medium

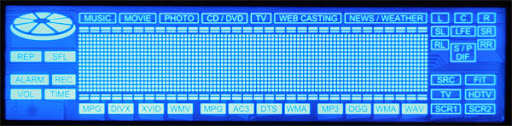

    High contrast setting (you can’t see the text at all):


    LCD Contrast High

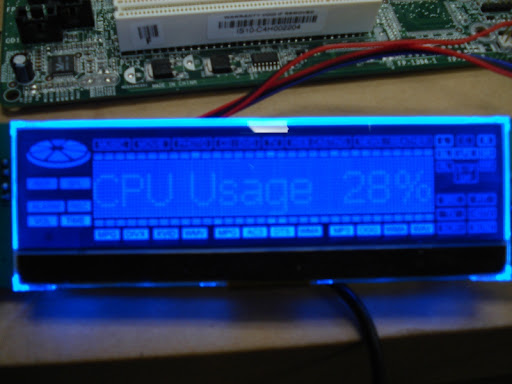

  • Antec support sent me pictures of a similar LCD in a test system, they
    do not have the actual case, and it looks marginally better than mine, but
    still very poor.

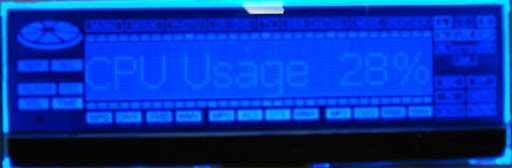

    Low contrast:


    LCD Antec Contrast Low

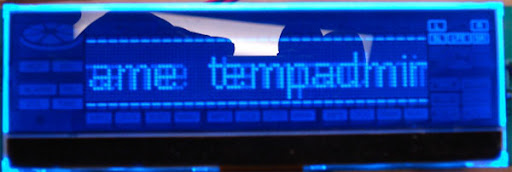

    Medium contrast:


    LCD Antec Contrast Medium

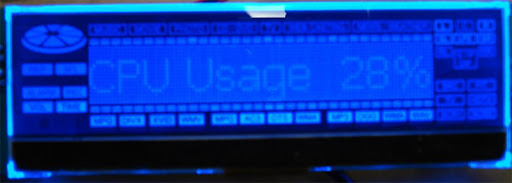

    High contrast:


    LCD Antec Contrast High

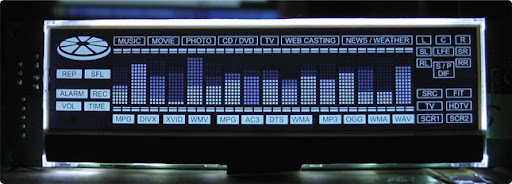

    Picture from SoundGraph website for iMON OEM LCD (very different to the
    Antec version):


    LCD SoundGraph iMon OEM

  • The LCD started flickering, I tried rebooting, removing power from the
    LCD, does not stop.

    It does seem that while the PC boots the display does not flicker, but the
    moment the iMON software starts the flickering starts.

    Here is a movie of the flickering in DivX AVI format
    (4.27MB).

  • I returned the LCD module to Antec under RMA, they were unable to
    reproduce the flicker problem, but they did send me a replacement LCD
    module.

    I installed the new LCD module, and the new module does not suffer
    from the flickering problem.

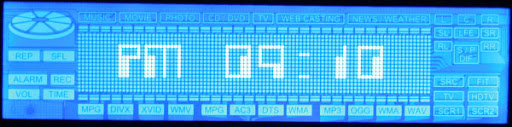

    As for the quality of the new LCD module, the
    text is now readable at the medium contrast setting, but not nearly as good as the picture from the iMON website.


    Replacement LCD Module

  • The remote only starts working once you have logged in, you can not use
    the remote prior to logging in. I am now forced to use a mouse or keyboard
    to log in.

    The original eHome Media Center external IR receiver works just fine without
    being logged in, this allows me to boot the machine, and select an account
    and log in using only the navigation buttons on the remote.

  • The LCD would occasionally hang with strange characters or elements on
    the display. Once this happens you ave to unplug the case and reboot.

    This problem is being discussed in

    this
    thread on the SoundGraph forum.

The Outcome:

  • Several readers emailed me and also complained about the quality of the
    LCD display, and the lack of features vs. the retail iMon, I urge anybody
    that is not satisfied to contact Antec and raise your concerns.
  • Due to the poor LCD image quality and various other issues I do not recommend this case.
